50/60Hz Split Core Current Transformers (CT)

split core transformer
SDL standard series

Features

High precision cost-effective 50/60Hz CT split core measuring current transformers
High output signal level to reduce noise-signal ratio
High repeatability
High insulation between primary/secondary


  For detailed technical informations please request ITACOIL GENERAL CATALOGUE

73...225A
Code Max Input
Current 1
Typ Linearity
error
Max linearity
error
Burden
Resistor 2
Sec
Turns
Dielectric
strength 3
SDL003 73A 0.35% 1.0% 22 Ω 3000 1KV
SDL006 105A 0.35% 1.0% 10 Ω 3000 1KV
SDL009 225A 0.50% 1.0% 5 Ω 2000 1KV
1 - Accuracy range 5...120% of "Nom Input Current".
2 - Burden resistor values different than suggested values can be applied. It will affect Max/Nom current, output voltage and precision. See typical graphs for reference.
3 - Between sec leads/primary hole internal surface.

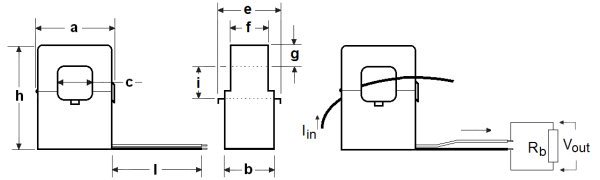

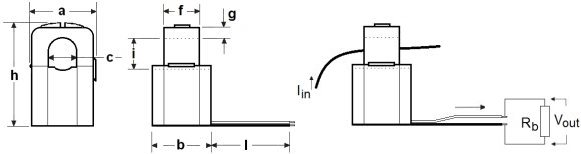

Dimensions (mm)

Code a b h e c f g i l Download
SDL003 26.4 27.9 42.4 - 10.0 14.4 6.2 10.7 175.0 file 3D .stp
SDL006 33.9 31.4 44.6 38.5 16.3 22.7 8.7 16.0 175.0 file 3D .stp
SDL009 49.0 34.5 67.3 42.9 24.2 21.8 13.1 24.4 730.0 file 3D .stp

SDL003 Split Core transformer
SDL006
SDL009
Split Core transformers
